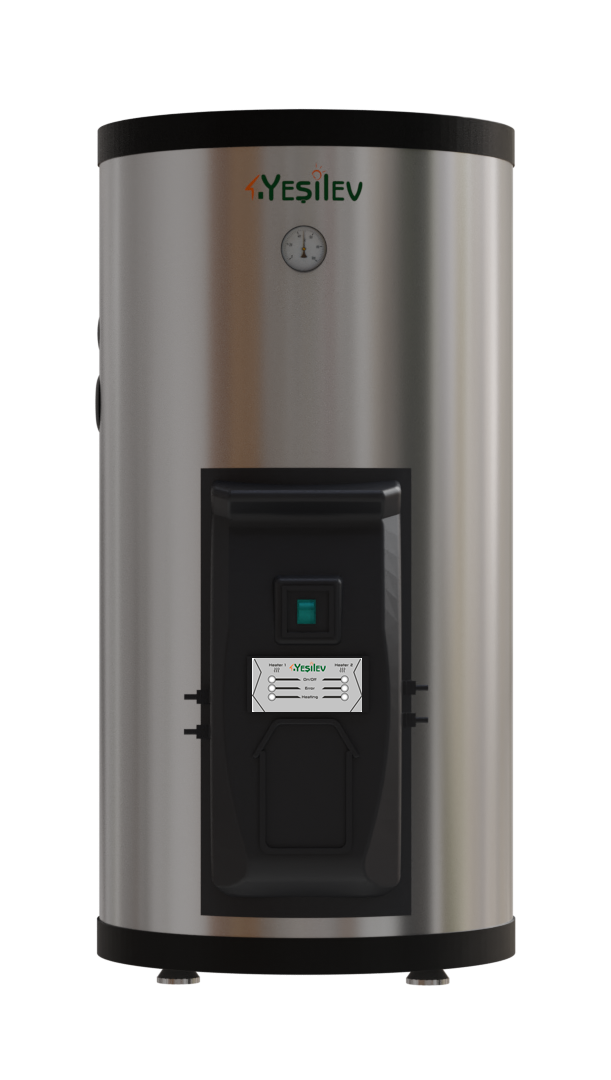

Sunboil Boyler Set

This innovative system powered by solar energy provides hot water for your home or workplace while helping you save energy and protect the environment. With SunBoil:



• You reduce your energy bills.
• You make an eco-friendly choice.
• You enjoy safe and trouble-free hot water use.

Get a Quote

  • Since no electricity is fed into the grid, there is no need to register the PV system. Hot water supply independent of the 230V mains power.

  • Two MPP trackers and a DC heating element provide photovoltaic heating power of up to 1,200 W.

  • CO₂-free hot water supply. The photovoltaic boilers of 120L, 150L, 200L, and 300L provide enough hot water to completely shut down your existing heating system during the summer.

  • The photovoltaic storage tank is equipped with two independently operating photovoltaic heating elements.

  • Each heating element is powered by an MPP tracker.

  • Up to 2,000 Wp of photovoltaic power can be connected to each heating element.

  • The heating elements in the storage tank heat the water up to 1,200 W.

  • To ensure sufficient hot water even on cloudy days, up to 4,000 Wp of photovoltaic power can be connected.

  • Alternatively, additional heating is possible via an existing AC water heater element.



  • The maximum photovoltaic heating temperature of the storage tank is 65°C.

Package Details

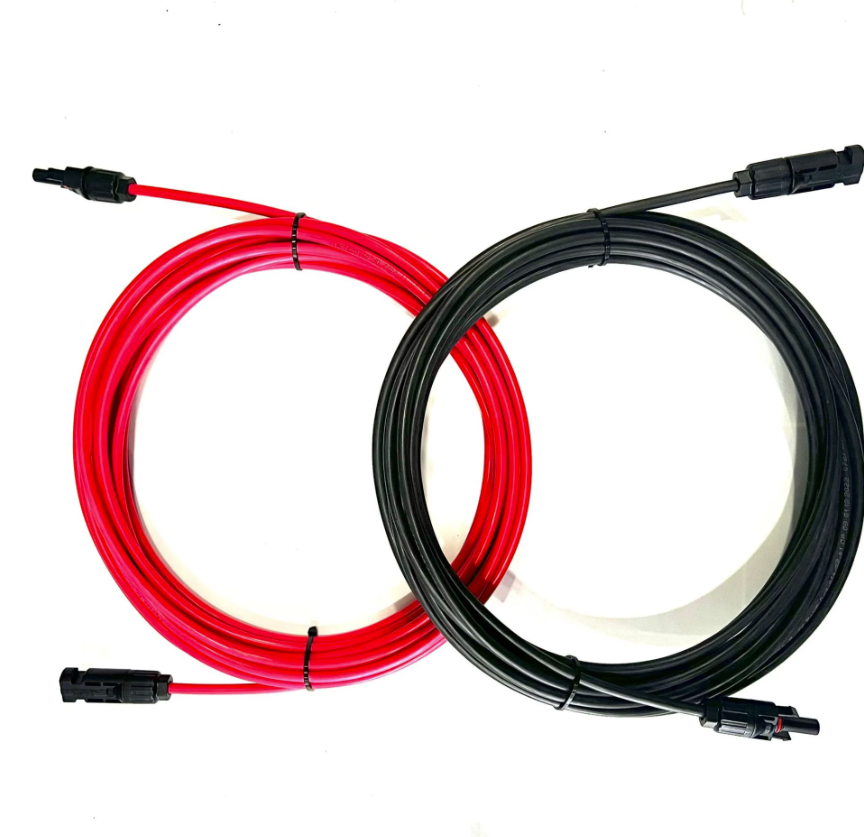

2 sets of 6 mm Solar Cable with Dual MC4 Connectors (Red 10 m – Black 10 m)

Each set of cables has a length of 10 meters black and 10 meters red, totaling 20 meters. (Used as 2 sets for device installation.)
Our solar cable has a thickness of 6 mm.
Used to extend the connection cable between the photovoltaic modules and the water tank.
Plug & Play: Take it out of the package and connect — no special tools required.
Technical Specifications
Cable Length: 10 m
Cable Cross-Section: 6 mm²

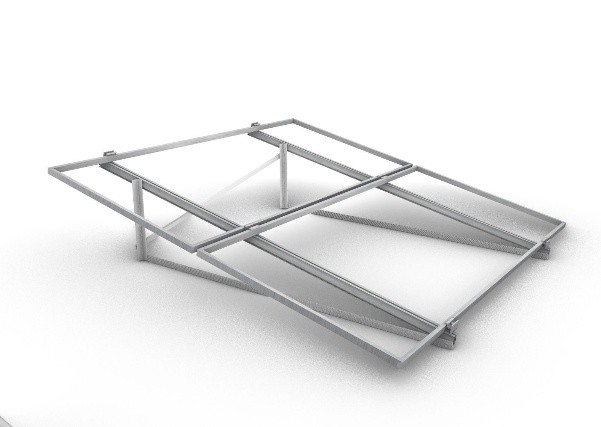

Aluminum PV Panel Mounting Bracket for Flat Roofs

Product Code: SFR-AL-2
Description: Designed for 2 PV panels.
Solar panels will be mounted horizontally.
Supplied as a ready-to-install set for 2 PV panels.

Set Contents:
2 L-legs with screws and pre-assembled posts.
2 aluminum profiles, 240 cm each.
2 U-clamps + square nuts + Allen head screws.
4 Z-type end clamps + square nuts + Allen head screws.
1 galvanized steel U-shaped 160 cm wind cross brace.
2 M8 screws.
4 steel anchors.

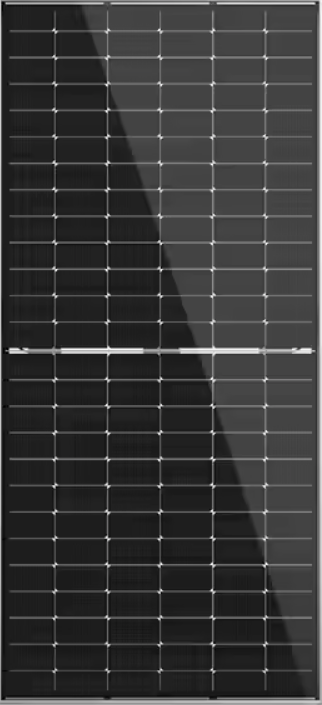

Solar Panel (550 Watt – 740 Watt Range)

The open-circuit voltage (VOC) of the solar panels is below 50V DC.
PV power range is between 550W and 740W.
Ammonia Corrosion Test: Corrosion resistance has been tested according to IEC 62716 standards.
Performance exceeds 3% even on cloudy days during morning and evening hours.

Advantages:
✅ High Performance: Produces up to 3% extra energy even on cloudy days or during morning and evening hours.
✅ Long Lifespan: Tested against harsh environmental conditions such as salty air, snow, wind, and humidity.
✅ Positive Power Guarantee: Each panel is tested after production and delivers higher power than the minimum specified value (+5W tolerance).
✅ Full Traceability: With the QR code, you can instantly view the real test data of each panel.
✅ Quality Standards: International quality assurance with TUV, IEC, and ISO certifications.
✅ Robust Design: Designed to withstand 5400 Pa snow load and 2400 Pa wind pressure.

Warranty:
🛠️ 12-Year Product Warranty
🔋 25-Year Performance Warranty (Power protection above 89.4%)

Technical Data:
For more detailed technical data, please contact the manufacturer.
