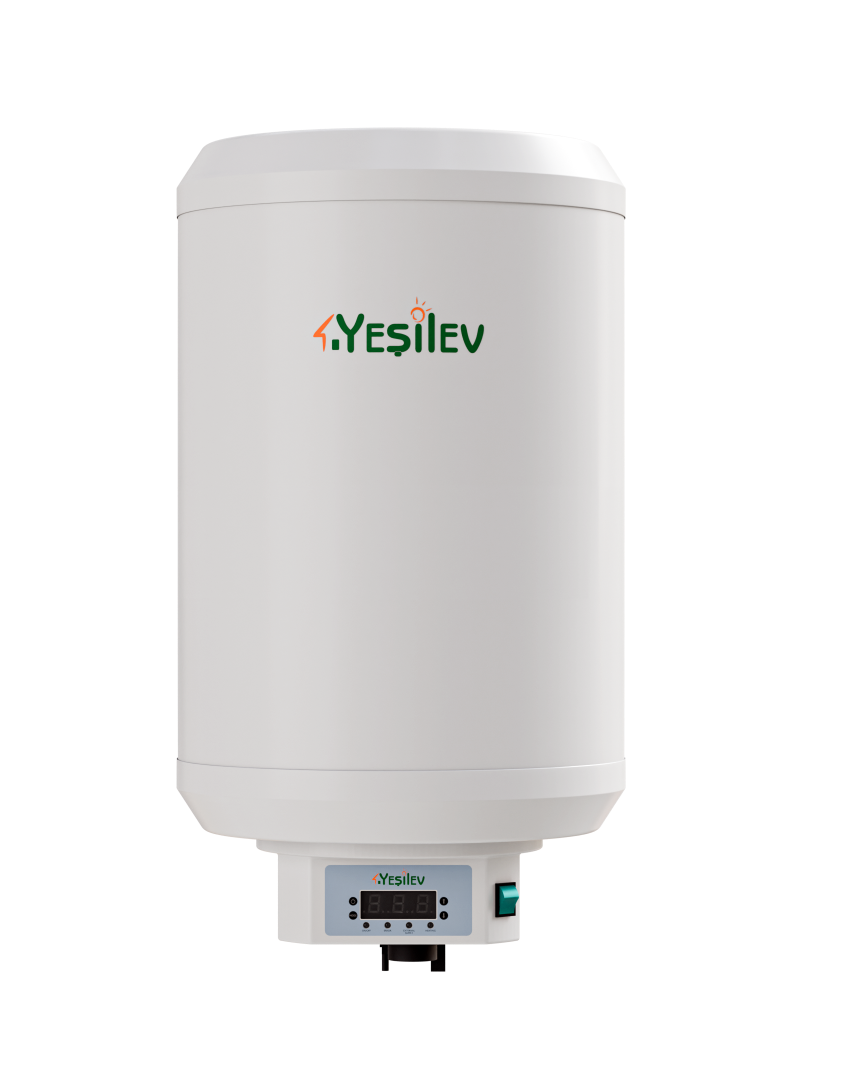

Sunsyphon Set
Description
This innovative solar-powered system provides hot water for your home or workplace while helping you save energy and protect the environment.
With Sunsyphon:
• You reduce your energy bills.
• You make an eco-friendly choice.
• You enjoy safe and trouble-free hot water use.
Details
- You can directly generate cost-effective hot water using the direct current from photovoltaic modules, helping you easily reduce your hot water expenses.
- The photovoltaic modules can be easily connected to the Sunsyphon water heater. If you have additional space, you can increase the number of PV panels for higher efficiency.
- When Sunsyphon heats 80 liters of water to the maximum temperature (65°C), the heating process automatically stops. If there is insufficient photovoltaic energy (for example, during winter or in poor weather conditions), the Sunsyphon solar hybrid boiler conveniently heats the water using mains electricity.

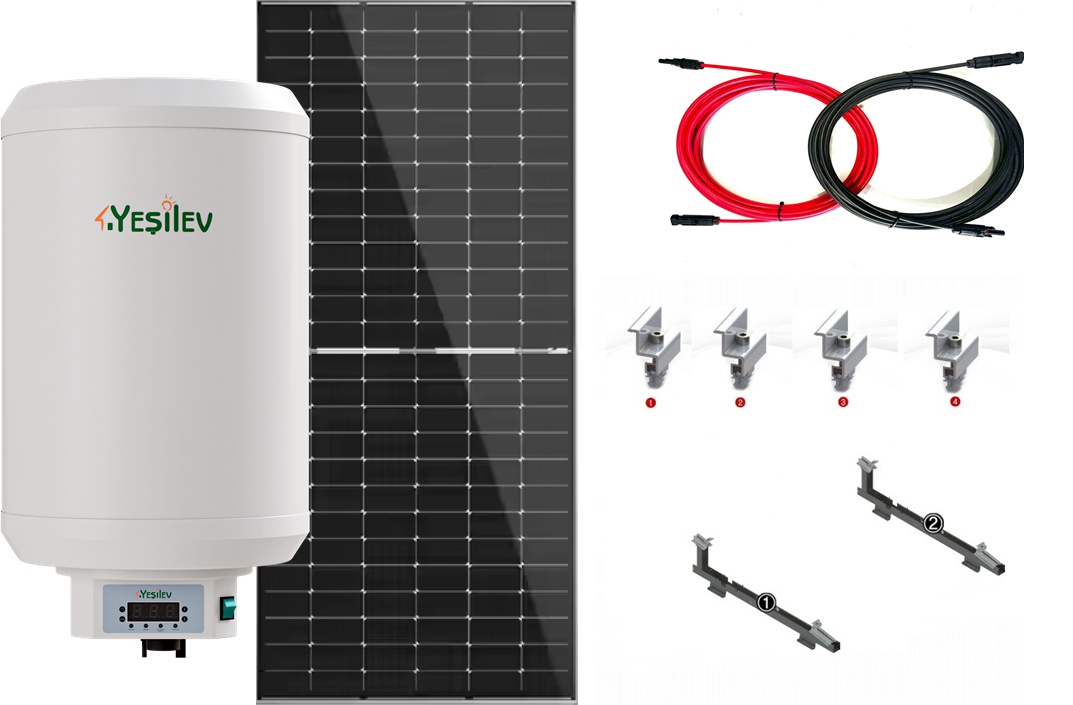

Package Details
Efficient Direct Power Use:
The direct current generated by the PV panel is converted straight into hot water without the need for an inverter or battery. This reduces costs and increases efficiency.
Easy Installation:

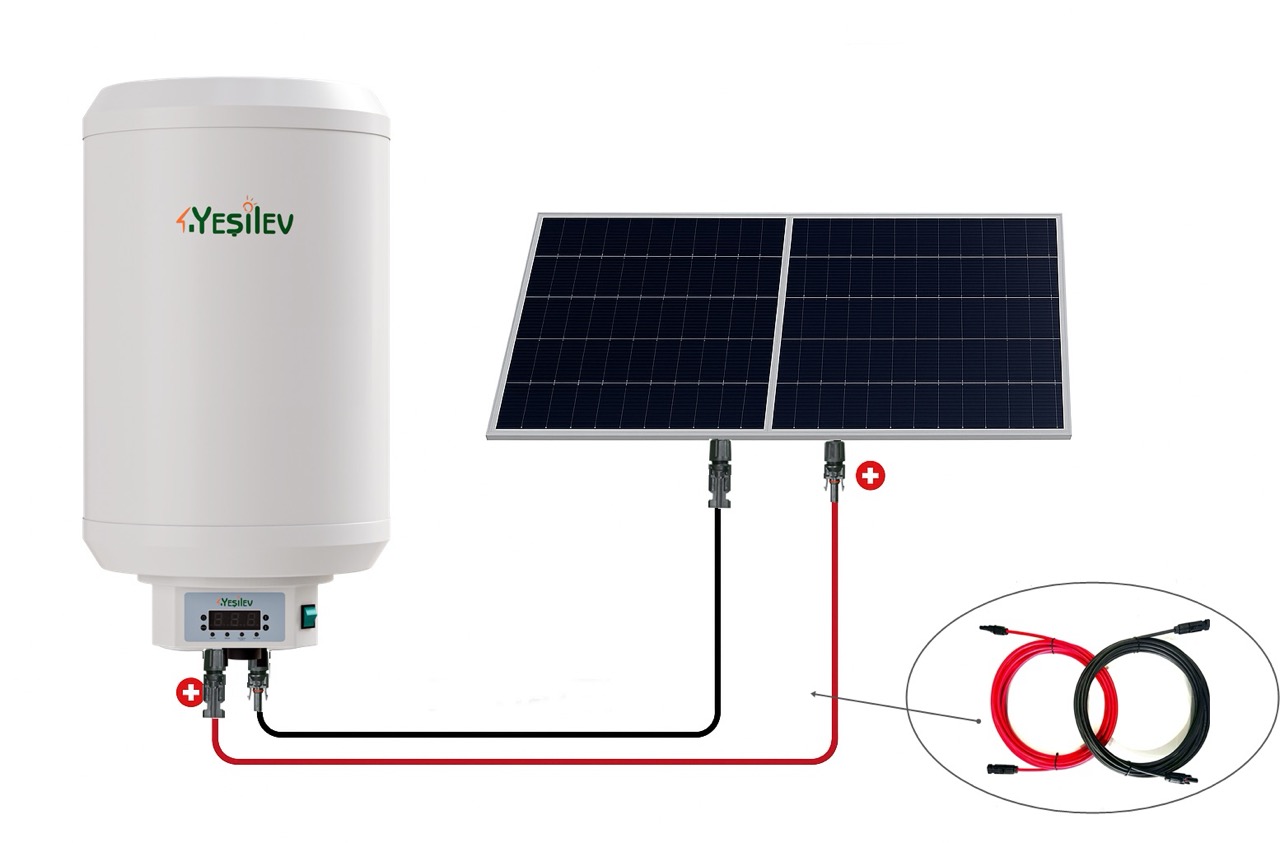

Plug & play. The PV panel can be easily connected to the Sunsyphon, allowing installation within minutes.
1,500 W Reheating:
If sunlight does not provide sufficient energy to heat the water for an extended period, the Sunsyphon can automatically reheat the water via the 230V AC secondary heating system. To enable reheating, set the tank’s adjustable thermostat to the minimum temperature (e.g., 40°C). When the water temperature falls below the set minimum, the AC power heats the water at 1,500 W. Once the water reaches the set minimum temperature again, reheating stops automatically.
65°C Maximum Water Temperature: The Sunsyphon has a maximum water temperature of 65°C.
No Electrician Required: Thanks to the extra-low voltage, no qualified electrician is needed for solar panel installation or complex wiring. Solar panels can be easily connected directly to the Sunsyphon water heater.
Multiple PV Panel Connections: If you connect multiple photovoltaic panels, you will need 2, 3, or 4 parallel connectors. This allows you to easily connect several solar panels in parallel.

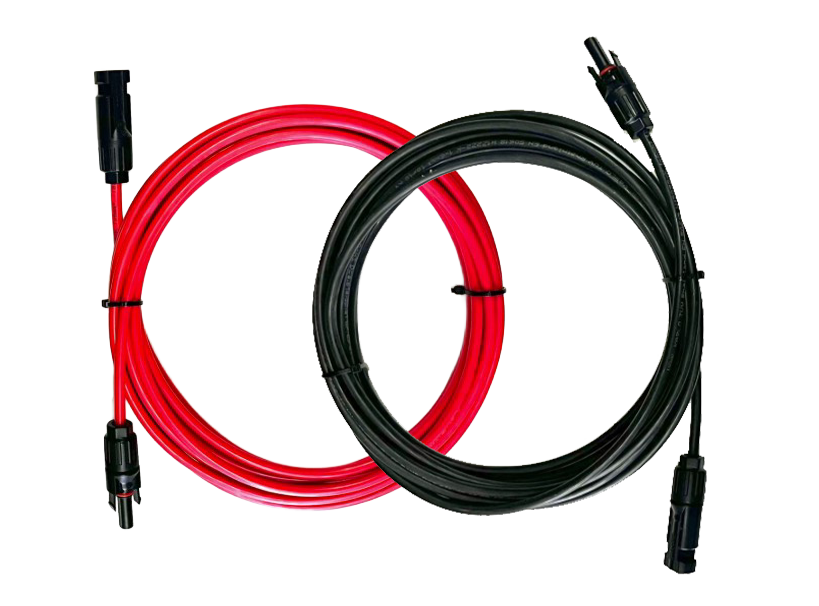

1 Set of 6 mm Solar Cable with Dual MC4 Connectors (Red 10 m – Black 10 m)
Each set of cables has a length of 10 meters black and 10 meters red, totaling 20 meters. (Used as 1 set for Sunsyphon installation.)
The solar cable has a thickness of 6 mm².
Used to extend the connection cable between PV modules and the water tank.
Plug & Play: Simply remove from the package and connect; no special tools are required.
Technical Specifications:
Cable Length: 10 m
Cable Cross-Section: 6 mm²

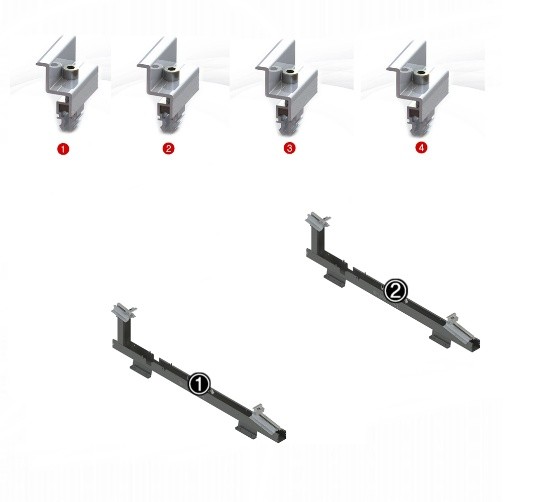

Flat Roof PV Panel Mounting System
Designed for 1 PV panel.
The solar panel will be mounted horizontally.
Supplied as a ready-to-install set for 1 PV panel.
Set Contents:
2 pcs SFR-MG-1 Flat Roof Solar Mounting Feet
2 pcs Aluminum profiles, E60mm, Magnelis coated, 10° angled, with fixed and rotating special connection system, non-slip sticky EPDM base, 1250 mm each
4 pcs Edge Clamp System
Edge Clamp with Aluminum Profile
Surface: Press/E60mm, DIN912-M8x35-Magni, M8 compression spring, max 20 mm
Height: 30–40 mm

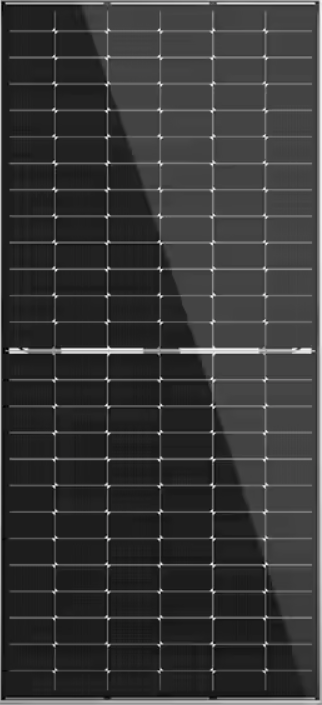

Solar Panel (550 Watt – 740 Watt Range)
The open-circuit voltage (VOC) of the solar panels is below 50V DC.
PV power range is between 550W and 740W.
Ammonia Corrosion Test: Corrosion resistance has been tested according to IEC 62716 standards.
Performance exceeds 3% even on cloudy days during morning and evening hours (200 W/m²).
Advantages:
✅ High Performance: Produces up to 3% extra energy even on cloudy days or during morning and evening hours.
✅ Long Lifespan: Tested against harsh environmental conditions such as salty air, snow, wind, and humidity.
✅ Positive Power Guarantee: Each panel is tested after production and delivers higher power than the minimum specified value (+5W tolerance).
✅ Full Traceability: With the QR code, you can instantly view the real test data of each panel.
✅ Quality Standards: International quality assurance with TUV, IEC, and ISO certifications.
✅ Robust Design: Designed to withstand 5400 Pa snow load and 2400 Pa wind pressure.
Warranty:
🛠️ 12-Year Product Warranty
🔋 25-Year Performance Warranty (Power protection above 89.4%)
Technical Data:
For more detailed technical information, please contact the manufacturer.
